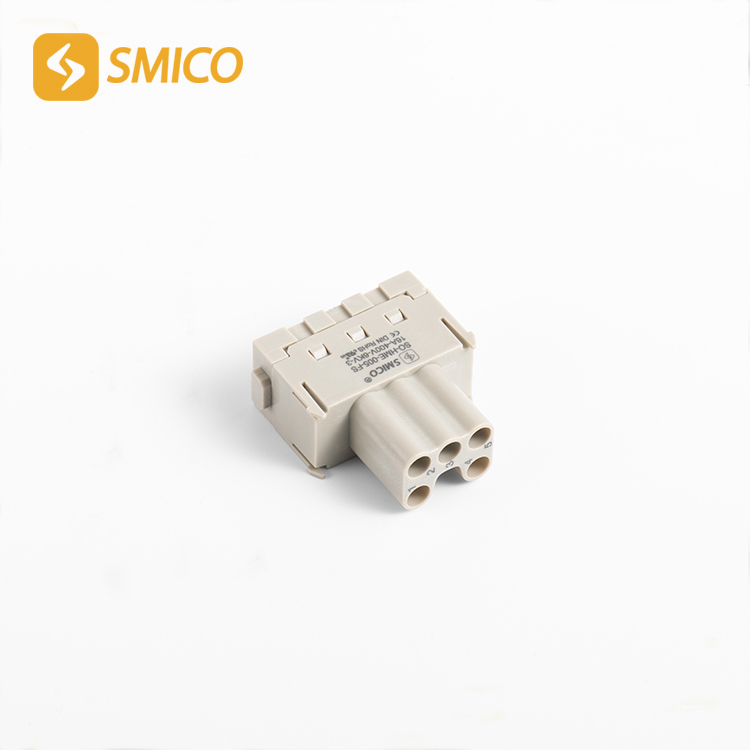

SO-HME-005-FS
Download
Part：Inserts
Product Certification：CE,UL,CUL,ROHS,DMT
Download
Product parameters
| Inserts | |
| Number of contacts | 5 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6kV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤3mΩ |
| Cage clamp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
