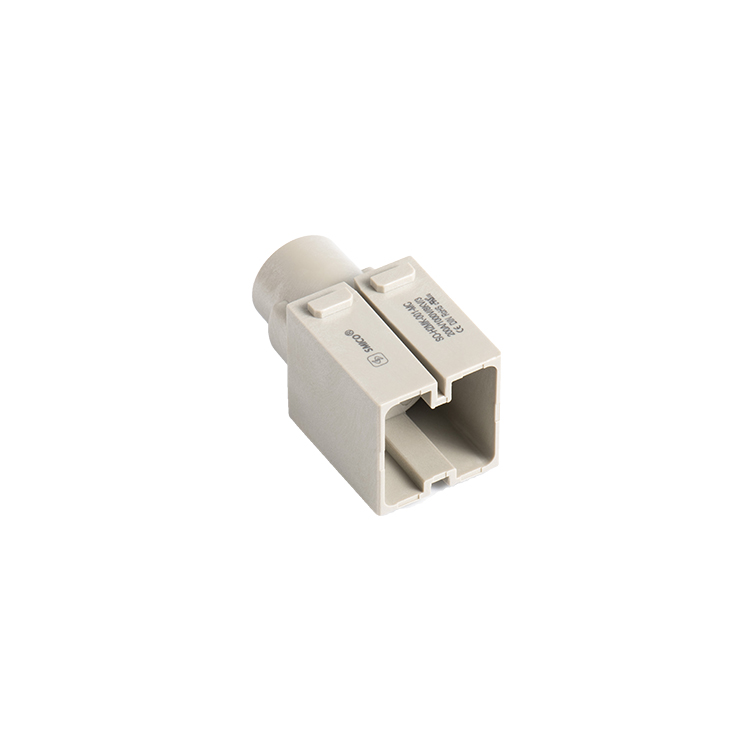

SO-H2MK-001-MC
Download
Part：Inserts
Product Certification：CE CUL UL ROHS DMT
Download
Product parameters
| Inserts | |
| Number of contacts | 1 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 200A |
| ---Rated voltage | 1000V |
| ---Rated impulse voltage | 8KV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤0.3mΩ |
| Crimp terminal | |
| ---mm2 | 25-70mm2 |
| Stripping length | 22.5mm |
| Max. insulation diameter | 18mm |
