ESS-100A-16-B-BK-00
Download
Part：
Product Certification：
Download
Wiring data

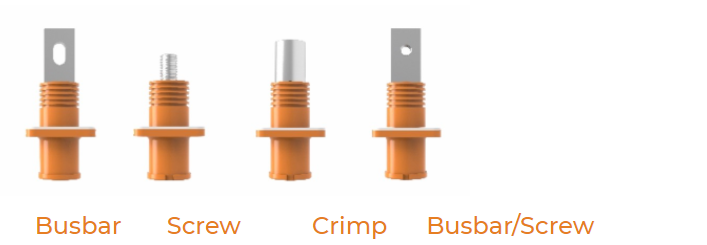

| Wiring mode Busbar |
| Protection grade (pair plug) | IP67 |
| Ambient temperature (operation) | -40°C ~ +125°C |
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
| Altitude | 2000m |
Mechanical properties
| Plugging times | 100 |
| Insertion force | <60N |
| Pullout force | >10N |
Material data
| Insulating material | Nylon |
| Halogen-free | Compliance with standards |
| Environmental protection matters | REACH/RoHS compliant |
| Sealing ring material | Silicone |
| Contact material | Copper alloy |
| Shell color | Orange |
| Flammability rating | UL94V-0 |
Electrical parameters
| Pollution level | 3 |
| Rated current | 100A / UL DC1500V |
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
