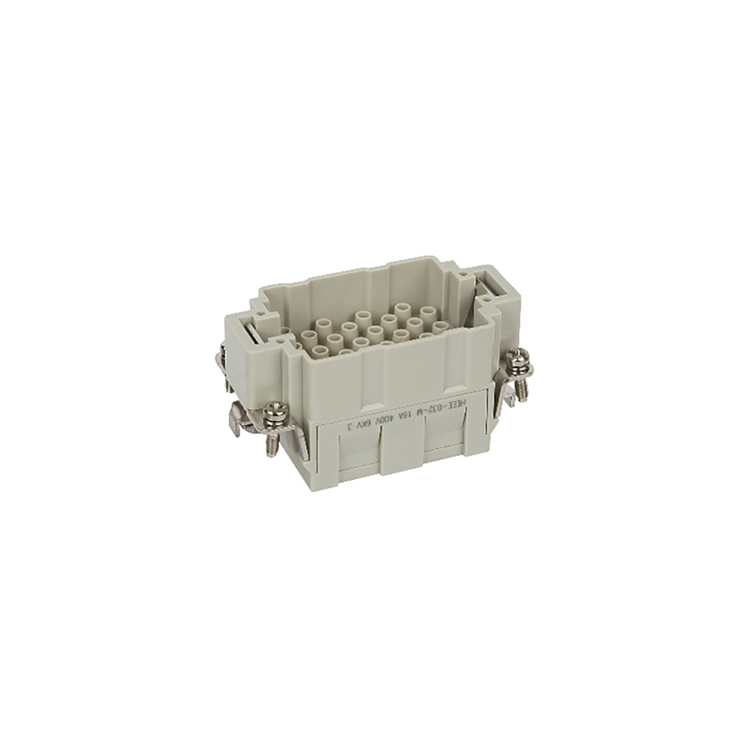

SO-HEEE-032-MC
Download
Part：Inserts
Product Certification：
Download
| Inserts | Suitable Shell:10BHood/Housing |
| Number of contacts | 32 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 830V 8kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm2 |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
