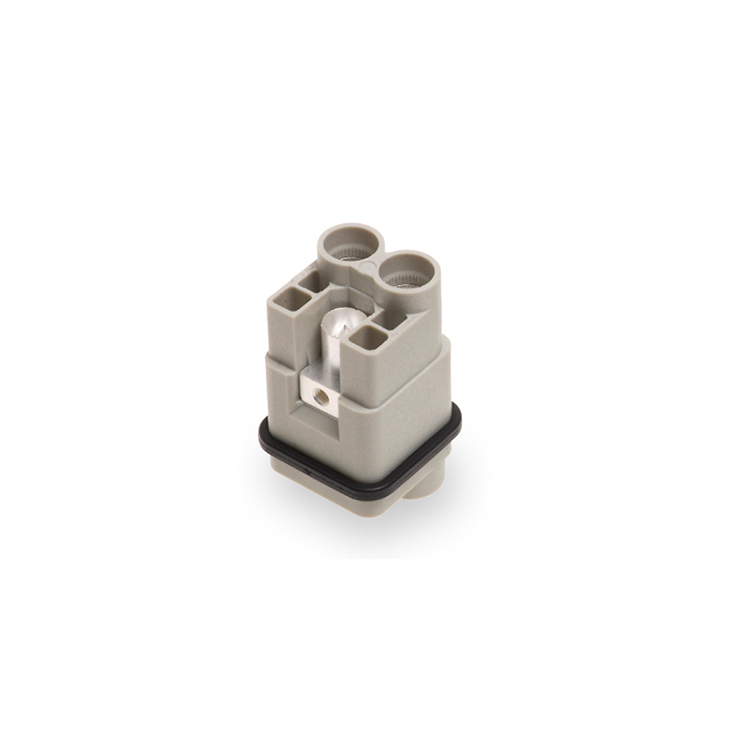

SO-HQV-002.2-M
Download
Part：Inserts
Product Certification：
Download
Product parameters
| Inserts | |
| Number of contacts | 2+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 40A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL | 400V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Axial screw termination | |
| ---mm2 | 2.5-10mm2 |
| ---AWG | 14-8 |
| Tightening torque | 1.8Nm |
| Stripping length | 8+1mm |
