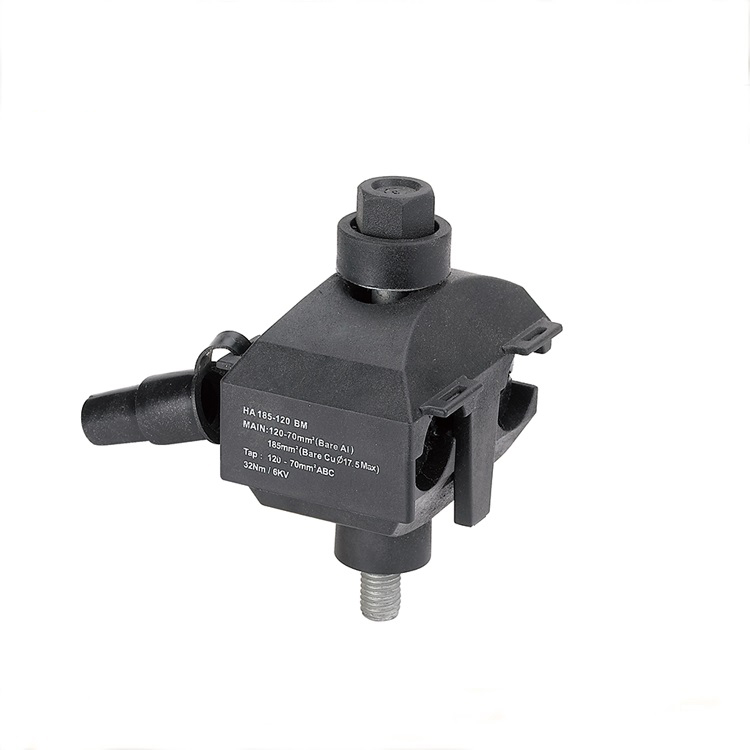

SMHA

These standards include tests to verify reliable operation even in the harshest environments:

Designed for installation from –20 °C up to +50 °C

• No limitation of mechanical loads for main and branch conductors

• Shear head forces are adapted to the required contact forces for each application (main, service, lightning)

• Voltage withstand to 6 kV in a 30 cm water bath

• No change in contact resistance and temperature after overloads and load cycling

• Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)

• Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber

Key Features:

• Range-taking

• Suitable for XLPE, PE or PVC conductors

• Waterproof

• Captive and flexible end caps

• All components are solid and fixed in place

• Equipped with shear head to ensure a reliable tightening torque

• Operating temperature -55°C to +55°C

• Installation temperature -20°C to +55°C

• Can be installed on energized main if not under load

• Model	Main line section	Branch section	No.Bolt
  ABS	25-70	6-35	1
  SMMA-1	16-95	16-25	1
  SMMA-2	70-95	70-95	1
  SMHA	70-185	70-120	1
  CPA	16-70	16-70	1
  DP10	50-70	50-70	1

•
