NES-B1

This clamp is designed to anchor the low voltage fully supportedA.B.C.(Aerial Bundled Conductors).

Description

- The arms are made of hot-dip galvanised steel. A bolt enables the clamp to be easily dismantled manually and anchored on a bracket fixed to a pole or façade.

- The cleats are made of UV resistant, glass fibre reinforced synthetic material.

- The conductors are attached using a combination of bolts and cleats. Two 17mm shear head nuts are used to control the tightening torque.

- Each conductor runs through a separate channel. The conductors are anchored by distributing the loads, protecting the insulation.

- A large opening facilitates the passage of the conductors between the clamp arms.

Implementation

- Unscrew the nuts.

- Open the A.B.C and insert each conductor into one of the channels.

- Screw the nuts alternately using a 17mm spanner until the shear head breaks. The 21mm head is only provided for possible dismantling.

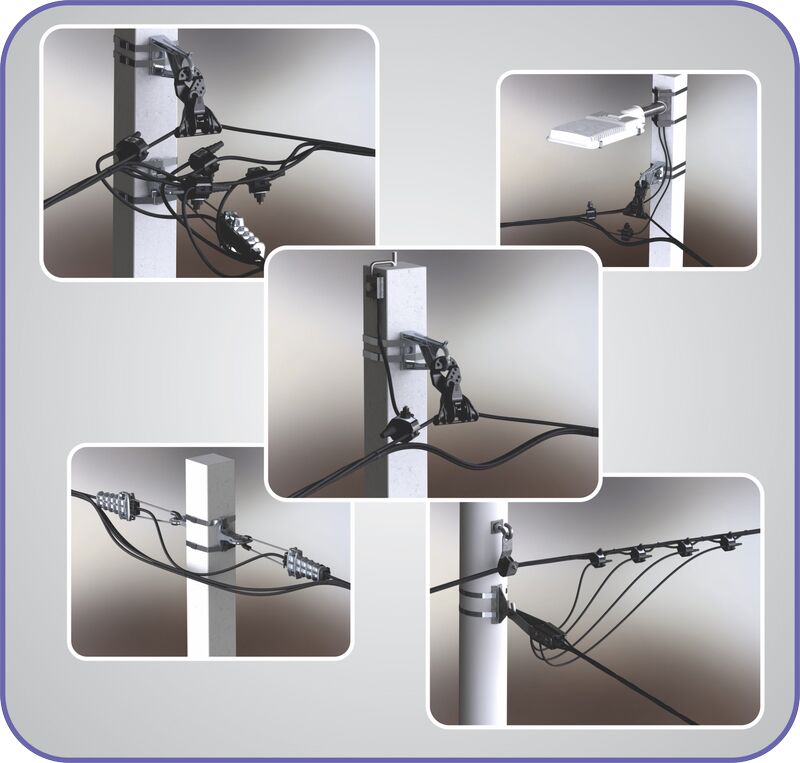

- Anchor the clamp on a hook.

- Additional tightening is achieved automatically by the cleats.

Material: Mild Steel ,Nylon plus fiber glass

Product property : It is used to terminate 4-core of aerial bundle conductor. Its function is fixing and tightening the insulation conductor .

Modle	Conductor Cross-Section(mm2)
NES-B1	4X(16-35)
NES-B2	4X(50-120)
NES-B3	4X(25-120)
NES-B4	4X(95-150)
