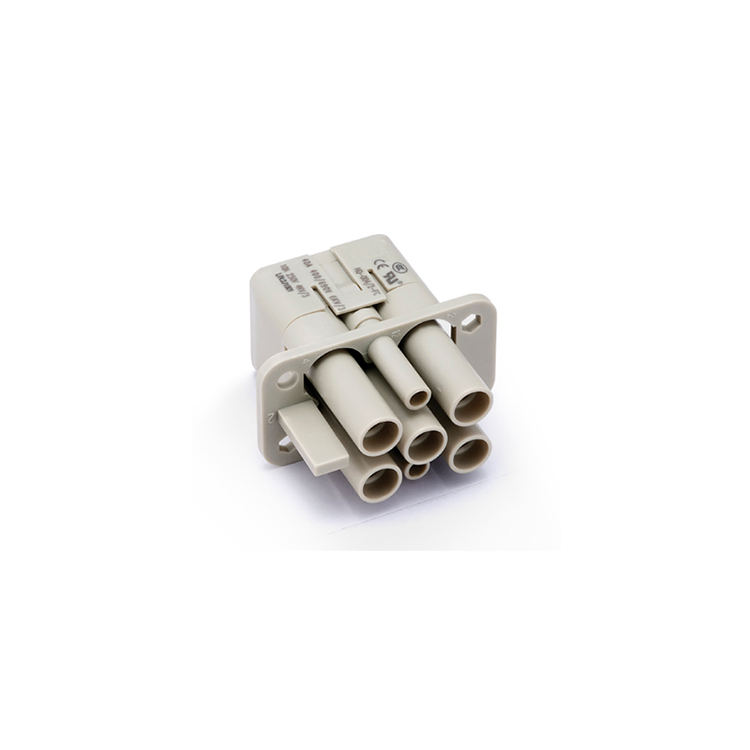

SO-HQ-004/2-FC
Download
Part：Inserts
Product Certification：
Download
Product parameters
| Inserts | |
| Number of contacts | 4/2+PE |
| Electrical data acc. to EN 61 984 | |
| Power side | |
| ---Rated current | 40A |
| ---Rated voltage conductor - ground | 400V |
| ---Rated voltage conductor - conductor | 690V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| Signal side | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL | 600/250V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 1.5-6mm2 /0.14-2.5mm2 |
| ---AWG | 16-10/26-14 |
| Max. insulation diameter | Quick Lock termination |
| ---Power contacts | 5mm |
